WB-DF Series mattress surround machine

Product No.：20211112141947
Online Inquiry

Product Presentation

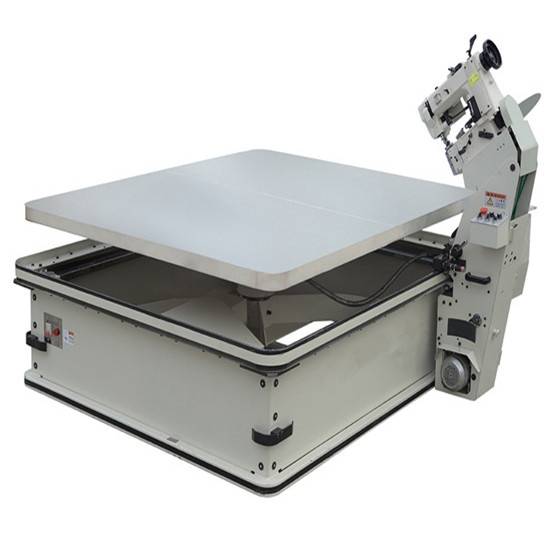

This equipment is mainly used for edge sewing between spring mattress, lower fabric and side fabric. It is also suitable for sewing other upholstered beds, sleeping bags and tents. It has the following characteristics:
According to customer requirements, imported or domestic 8b head can be adopted; Standard brand 2603 handpiece, shuttleless 300u handpiece
2. The worktable adopts the middle electric lifting, without the need to install an electric hoist on the roof, and there is no requirement for the height of the installation environment.
3. The tilt angle of the machine head is electrically adjusted
4. The sewing carriage box drives stepless speed regulation, and the turning position adopts automatic deceleration.
5. The suture is straight, uniform and beautiful; Stable operation, low vibration and noise

Cover seam mattress thickness	（20-550）mm
Table lifting range	280mm
Maximum sewing inclination	600
Power Supply	380V / 220V 50HZ
Table size	14851985mm/15851985mm
Overall dimension	21001600/1700850mm
Total power	1.12KW
Total weight	550/590KG
production efficiency	20PCS/H
